ESEMPIO applicativo del programma RETIGAS


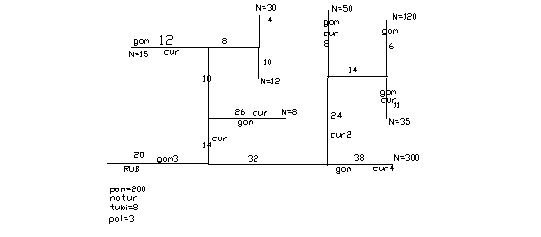

il disegno

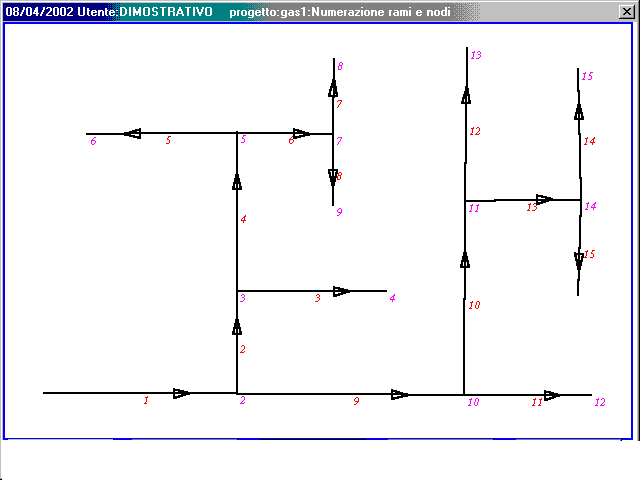

FIGURA 1 SCHEMA DELLA RETE CON LA NUMERAZIONE DEI RAMI(IN ROSSO) E DEI NODI(IN VIOLA)

MODALITA' DI CALCOLO

Il calcolo distribuisce la perdita assegnata ai rami di ogni percorso in misura proporzionale alla loro lungheza virtuale. Poiche' all'inizio non sono noti i diametri equindi le lunghezze virtuali il calcolo viene reiterato fino ad ottenere le lunghezze virtuali corrispondenti ai diametri selezionati. Poiche' con questi diametri si ha ancora un margine di differenza fra la caduta ammessa e quella reale, il programma cerca di modificare ,diminuendo, i diametri , ma sempre in modo da rispettare la condizione sopra esposta. L'ordine nella diminuzione dei diametri viene fatto rispetto alla maggior convenienza nel diminuire il peso delle tubazioni. Cioe' si cerca di diminuire la tubazione la cui eventuale variazione di peso e' maggiore
------------------------------------------------------------------------------------------------------------------
ESEMPIO TABULATO CALCOLO RETE

ANALISI RETE
    Max nodo         :    16
    Nodi totali         :    16
    Nodi esterni        :     9
    Nodi esterni uscita :     8
    Nodi esterni entrata:     1
    Rami           :    15
    Ramo libero           :    16
    Rami cancellati:     0
    Nodi interni        :     7
    Utenze previste     :     8
    Percorsi previsti   :     8
percorsi trovati inizialmente:   8
percorsi trovati:  8
Rete ad albero
--------------------------------------------------------------
Dati generali
-------------------------------------------------------------------------
TITOLO PROGETTO:
DESCRIZIONE:
DATA:27/03/2002
NOME FILE:C:\MIADIR\EDILG.TXT
Serie tubi di default nel progetto:UNI 4149-Tubi  acciaio serie P
CALCOLO A PERDITA TOTALE fra alimentazione e le utenze
Fluido: GAS NATURALE A 16'C
PROPRIETA: VISCOSITA[cst]:   14.30  massa volum[kg/mc]:    0.73
Tipo di calcolo  GAS BASSA PRESSIONE
Formula calcolo perdite:RENOUARDT
--------------------------------------------------------------
POTENZE TERMICHE UTENZE
UTENZA     RAMO       POTENZA
                      KW
   1          3          8.000
   2          5         15.000
   3          7         30.000
   4          8         12.000
   5         11        300.000
   6         12         50.000
   7         14        120.000
   8         15         35.000
--------------------------------------------------------------
PERDITE di carico rami ,calcolo nominale
--------------------------------------------------------------
    TUBAZIONI  calcolo nominale
  ramo     Q    tubazione    L     Lacc   Leq     Pt     vel
        mc/h                 mt     mt    mt      Pa     m/s
  1    57.159 3"             20.0  17.05  37.05   45.6   3.04
  2     6.518 1"             14.0   1.70  15.70   65.4   2.96
  3     0.802 1/2"           26.0   1.50  27.50   30.9   1.03
  4     5.716 1"             10.0   1.38  11.38   37.4   2.60
  5     1.504 1/2"           12.0   1.50  13.50   47.7   1.93
  6     4.212 1"              8.0   1.38   9.38   17.7   1.91
  7     3.008 3/4"            4.0   0.44   4.44   13.6   2.16
  8     1.203 1/2"           10.0   0.30  10.30   24.2   1.54
  9    50.641 2.1/2"         32.0   3.99  35.99   76.4   3.70
 10    20.557 2"             24.0   4.11  28.11   40.0   2.51
 11    30.084 2.1/2"         38.0   7.77  45.77   37.7   2.20
 12     5.014 1"              8.0   2.16  10.16   26.3   2.28
 13    15.543 2"             14.0   2.89  16.89   14.5   1.90
 14    12.033 1.1/2"          6.0   2.65   8.65   14.5   2.36
 15     3.510 1"             11.0   2.16  13.16   17.8   1.59
LEGENDA:
 Lacc=lunghezza equivalente accidentalita
 Leq =lunghezza totale equivalente
Pt=perdite totali(in pascal)
vel=velocita
--------------------------------------------------------------
VERIFICA DELLA PERDITA ALIMENTAZIONE-UTENZE
UTENZA nr:  1  RAMO:  3  DP percorso=     141.9
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  2  tubazione:1"                    DP ramo=      65.4 Leq:  15.7
ramo nr:  3  tubazione:1/2"                  DP ramo=      30.9 Leq:  27.5
UTENZA nr:  2  RAMO:  5  DP percorso=     196.1
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  2  tubazione:1"                    DP ramo=      65.4 Leq:  15.7
ramo nr:  4  tubazione:1"                    DP ramo=      37.4 Leq:  11.4
ramo nr:  5  tubazione:1/2"                  DP ramo=      47.7 Leq:  13.5
UTENZA nr:  3  RAMO:  7  DP percorso=     179.7
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  2  tubazione:1"                    DP ramo=      65.4 Leq:  15.7
ramo nr:  4  tubazione:1"                    DP ramo=      37.4 Leq:  11.4
ramo nr:  6  tubazione:1"                    DP ramo=      17.7 Leq:   9.4
ramo nr:  7  tubazione:3/4"                  DP ramo=      13.6 Leq:   4.4
UTENZA nr:  4  RAMO:  8  DP percorso=     190.3
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  2  tubazione:1"                    DP ramo=      65.4 Leq:  15.7
ramo nr:  4  tubazione:1"                    DP ramo=      37.4 Leq:  11.4
ramo nr:  6  tubazione:1"                    DP ramo=      17.7 Leq:   9.4
ramo nr:  8  tubazione:1/2"                  DP ramo=      24.2 Leq:  10.3
UTENZA nr:  5  RAMO: 11  DP percorso=     159.7
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  9  tubazione:2.1/2"                DP ramo=      76.4 Leq:  36.0
ramo nr: 11  tubazione:2.1/2"                DP ramo=      37.7 Leq:  45.8
UTENZA nr:  6  RAMO: 12  DP percorso=     188.3
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  9  tubazione:2.1/2"                DP ramo=      76.4 Leq:  36.0
ramo nr: 10  tubazione:2"                    DP ramo=      40.0 Leq:  28.1
ramo nr: 12  tubazione:1"                    DP ramo=      26.3 Leq:  10.2
UTENZA nr:  7  RAMO: 14  DP percorso=     190.9
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  9  tubazione:2.1/2"                DP ramo=      76.4 Leq:  36.0
ramo nr: 10  tubazione:2"                    DP ramo=      40.0 Leq:  28.1
ramo nr: 13  tubazione:2"                    DP ramo=      14.5 Leq:  16.9
ramo nr: 14  tubazione:1.1/2"                DP ramo=      14.5 Leq:   8.7
UTENZA nr:  8  RAMO: 15  DP percorso=     194.2
ramo nr:  1  tubazione:3"                    DP ramo=      45.6 Leq:  37.1
ramo nr:  9  tubazione:2.1/2"                DP ramo=      76.4 Leq:  36.0
ramo nr: 10  tubazione:2"                    DP ramo=      40.0 Leq:  28.1
ramo nr: 13  tubazione:2"                    DP ramo=      14.5 Leq:  16.9
ramo nr: 15  tubazione:1"                    DP ramo=      17.8 Leq:  13.2
cadute di pressione in Pascal
--------------------------------------------------------------
PERDITE CONCENTRATE
--------------------------------------------------------------

PROGR  RAMO   CODICE  NUMERO   Diam   Leq   DESCRIZIONE
              fisico            mm     m
   1      1      5      1      81.6   1.69  RUBINETTO
   2      1      3      3      81.6  10.45  GOMITO
   3      1     28      1      81.6   4.92  TEE
   4      2     30      1      27.9   0.32  CURVA
   5      2     28      1      27.9   1.38  TEE
   6      3      3      1      16.6   0.96  GOMITO
   7      3     30      1      16.6   0.23  CURVA
   8      3      5      1      16.6   0.30  RUBINETTO
   9      4     28      1      27.9   1.38  TEE
  10      5     30      1      16.6   0.23  CURVA
  11      5      3      1      16.6   0.96  GOMITO
  12      5      5      1      16.6   0.30  RUBINETTO
  13      6     28      1      27.9   1.38  TEE
  14      7      5      1      22.2   0.44  RUBINETTO
  15      8      5      1      16.6   0.30  RUBINETTO
  16      9     28      1      69.6   3.99  TEE
  17     10     30      2      53.8   1.22  CURVA
  18     10     28      1      53.8   2.89  TEE
  19     11      3      1      69.6   2.88  GOMITO
  20     11     30      4      69.6   3.43  CURVA
  21     11      5      1      69.6   1.47  RUBINETTO
  22     12      3      1      27.9   1.27  GOMITO
  23     12     30      1      27.9   0.32  CURVA
  24     12      5      1      27.9   0.57  RUBINETTO
  25     13     28      1      53.8   2.89  TEE
  26     14      3      1      42.5   1.74  GOMITO
  27     14      5      1      42.5   0.91  RUBINETTO
  28     15      3      1      27.9   1.27  GOMITO
  29     15     30      1      27.9   0.32  CURVA
  30     15      5      1      27.9   0.57  RUBINETTO

COMPUTO METRICO
-------------------------------------------------------------------------
computo           tubazioni
COD       TUBAZIONE                               METRI      Peso KG
      91  1/2"                                    48.000     12.08
      92  3/4"                                     4.000     15.65
      93  1"                                      51.000     24.23
      95  1.1/2"                                   6.000     35.72
      96  2"                                      38.000     50.30
      97  2.1/2"                                  70.000     64.23
      98  3"                                      20.000     84.41
--------------------------------------------------------------
